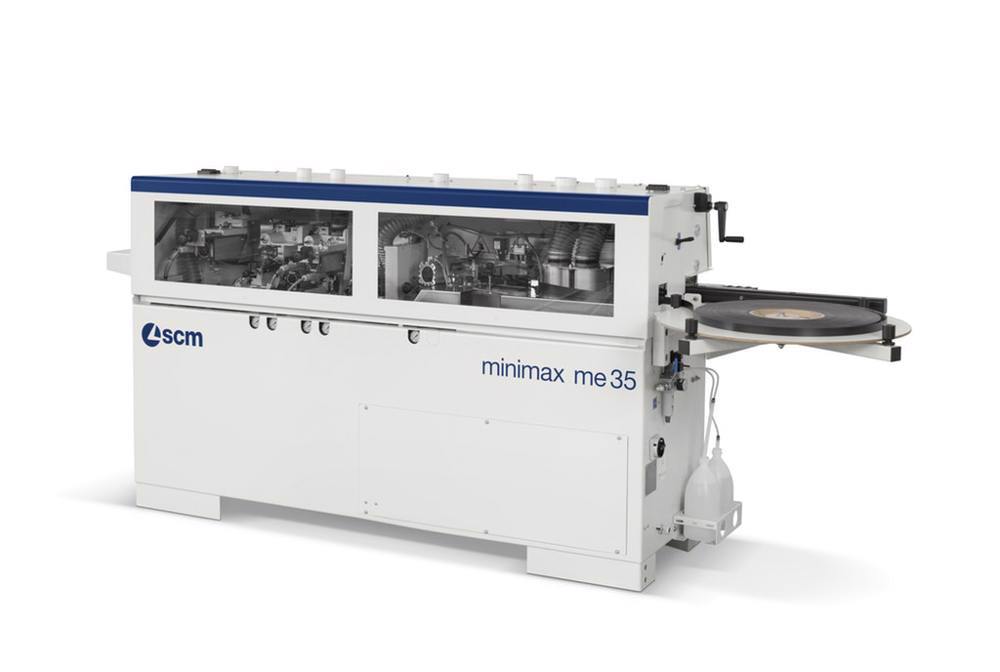

SCM minimax ME 35t is an automatic edgebander with a pre-milling unit for furniture and panel production. It processes rolled edging from 0.4 to 3 mm and solid wood strips up to 5 mm, with a feed speed of 7 m/min.
Pre-milling prepares the panel edge before gluing. Ask TECH WOOD for a quotation specifying your panel materials, edge thicknesses and required finish so that the machine configuration and optional units can be confirmed.
Pre-milling and edge finishing

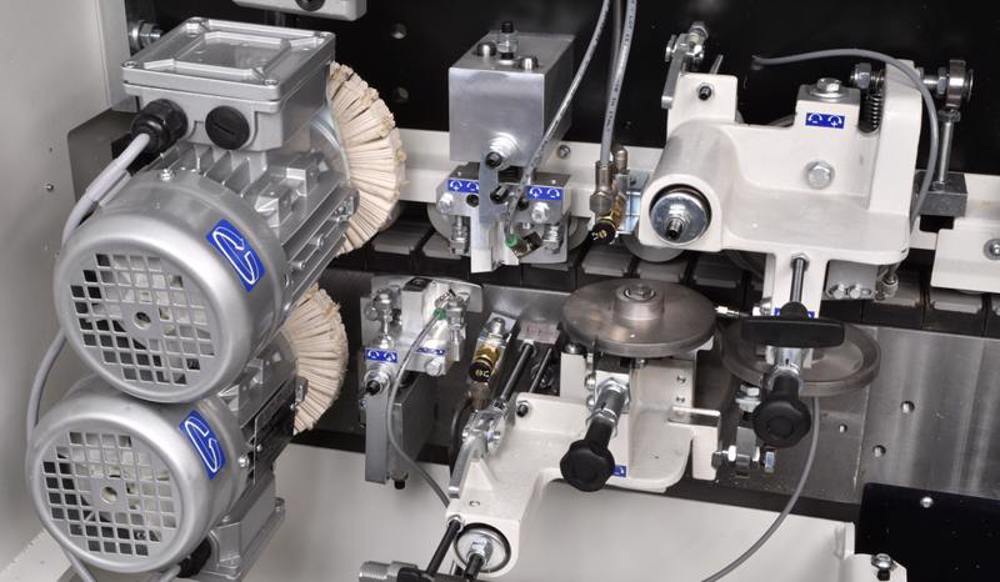

The ME 35t combines panel-edge preparation with automatic edgebanding. Its pre-milling unit removes material from the edge before glue application, helping prepare a consistent surface for the edging.
Choose the configuration for your panels
End-cutting, radius finishing and scraping requirements should be specified when requesting a quotation. Optional units and their suitability depend on the selected configuration; photographs may show optional equipment.
Contact TECH WOOD to confirm availability, delivery and the configuration suitable for your production.
SCM minimax ME 35t: technical data
- Work table: 3000 x 525 mm
- Rolled edge thickness: 0.4–3 mm
- Solid wood strips: up to 5 mm
- Panel thickness: 8–50 mm
- Minimum panel length / width: 190 / 110 mm
- Feed speed: 7 m/min
Confirm the supplied configuration, optional equipment and installation requirements with TECH WOOD before ordering.
